R1300GS 22 (KA1) | Brakes
ROTATIONAL-SPEED SENSOR, REAR

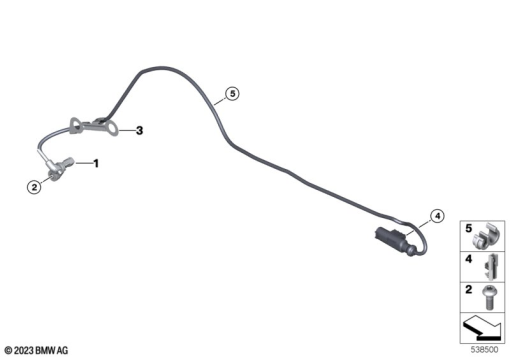

Diagram #34_3422 | 5 parts | 3 available in shop
100%
Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 7 914 232 | WHEEL SPEED SENSOR | 1 | |
| 2 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 3 | 34 52 1 628 926 | CABLE ROUTING | 1 | |
| 4 | 61 13 7 713 658 | PLUG-IN CONNECTION BRACKET | 1 | |
| 5 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | 1 |
