R1300GS 22 (KA1) | Accessories

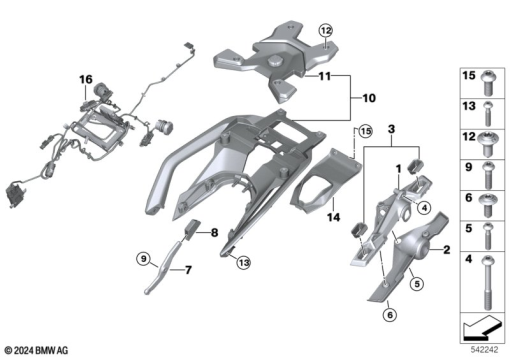

RETROFIT, CASE CARRIER/TOPCASE
Diagram #77_1595 | 21 parts | 2 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 541 471 | CASE CARRIER LEFT | 1 | |
| 1 | 46 62 1 541 472 | CASE HOLDER RIGHT | 1 | |
| 2 | 46 62 7 105 859 | TRIM CASE CARRIER LEFT | 1 | |
| 2 | 46 62 7 105 860 | TRIM CASE CARRIER RIGHT | 1 | |
| 3 | 46 62 1 541 470 | MOUNT CASE | 1 | |
| 4 | 07 12 9 908 681 | FILLISTER-HEAD SCREW - M8X70 MK | 1 | |
| 5 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 | |
| 6 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | 1 | |
| 7 | 46 71 7 923 483 | CASE CARRIER, LEFT LOWER | 1 | |
| 7 | 46 71 7 923 484 | CASE CARRIER, RIGHT LOWER | 1 | |
| 8 | 46 71 8 556 271 | 0.03 | 1 | |
| 9 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 10 | 77445A9D5E7 | SET: KIT, TOPCASE CARRIER | 1 | |
| 11 | 46 54 8 101 196 | KIT, TOP CASE CARRIER | 1 | |
| 12 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | 1 | |
| 13 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 | |
| 14 | 46 62 7 107 863 | COVER, TOPCASE CARRIER | 1 | |
| 15 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | 1 | |
| 16 | 77535A86319 | SET: KIT ELECTRICAL SYSTEM CASE/TOPCASE | 1 | |
| 3 | 61 13 7 105 931 | RETAINING CLIP CONNECTOR HOUSING | 1 | |
| 1 | 61 13 9 152 083 | MOUNT FOR ASD PLUG CONNECTION | 1 |
