R1300GS 22 (KA1) | Accessories
RETROFIT, CASE CARRIER

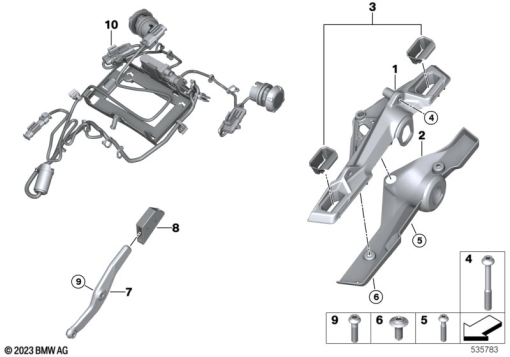

Diagram #77_1594 | 14 parts | 2 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 541 471 | CASE CARRIER LEFT | 1 | |
| 1 | 46 62 1 541 472 | CASE HOLDER RIGHT | 1 | |
| 2 | 46 62 7 105 859 | TRIM CASE CARRIER LEFT | 1 | |
| 2 | 46 62 7 105 860 | TRIM CASE CARRIER RIGHT | 1 | |
| 3 | 46 62 1 541 470 | MOUNT CASE | 1 | |
| 4 | 07 12 9 908 681 | FILLISTER-HEAD SCREW - M8X70 MK | 1 | |
| 5 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 | |
| 6 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | 1 | |
| 7 | 46 71 7 923 483 | CASE CARRIER, LEFT LOWER | 1 | |
| 7 | 46 71 7 923 484 | CASE CARRIER, RIGHT LOWER | 1 | |
| 8 | 46 71 8 556 271 | 0.03 | 1 | |
| 9 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 10 | 77535A86317 | SET: SET ELECTRICAL SYSTEM CASE | 1 | |
| 2 | 61 13 7 105 931 | RETAINING CLIP CONNECTOR HOUSING | 1 |
