R1300GS 22 (KA1) | Accessories

RETROFIT, LUGGAGE PLATE

Diagram #77_1596 | 2 parts

100%

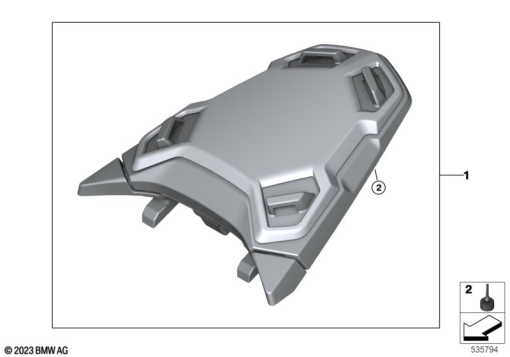

R1300GS 22 (KA1) RETROFIT, LUGGAGE PLATE exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
77 14 1 541 531
LUGGAGE PLATE1
2
52 53 7 677 424
SUPPORT - D=14MM1
