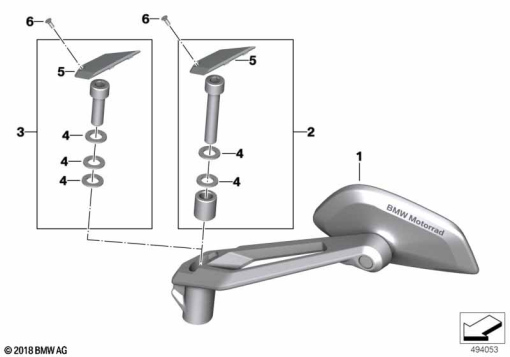

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 16 8 406 497 | MIRROR LEFT - BLACK-SILVER | - | |
51 16 8 406 498 | MIRROR RIGHT - BLACK-SILVERAlternative for position 1 | - | ||
| 2 | 51 16 8 414 268 | SET: SET MOUNTED PARTS MIRROR | - | |
| 3 | 51 16 8 414 269 | SET: SET MOUNTED PARTS MIRROR | - | |
| 4 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
07 11 9 907 114 | WASHER - 10-200HV-ZNNIVAlternative for position 4 | - | ||
| 6 | 07 11 9 907 288 | COUNTERSUNK HEAD SCREW - M3X8-A2-70 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
