R1250GS 21 (K50) | Vehicle Trim

REP.KIT F LOCK CYLINDER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #51_3316 | 7 parts

100%

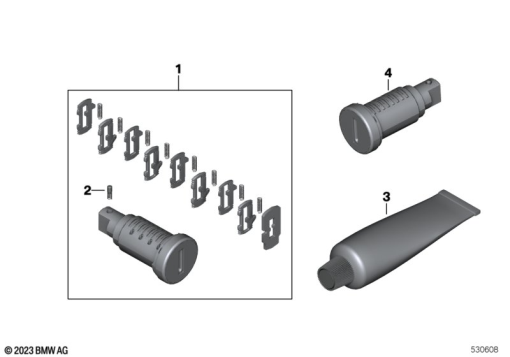

R1250GS 21 (K50) REP.KIT F LOCK CYLINDER exploded view parts diagram

Parts List (7)

#	Part Number	Description	Qty
1	51 25 7 698 204	SET: REP.KIT F LOCK CYLINDER	-
	51 25 7 698 204	SET: REP.KIT F LOCK CYLINDERAlternative for position 1	-
	51 25 7 698 203	SET: REP.KIT F LOCK CYLINDERAlternative for position 1	-
3	83 23 2 152 082	GREASE MI-SETRAL-43 N - 50G	-
4	51 25 7 681 200	LOCK CYLINDER WITH VIN CODE	-
	51 25 7 681 200	LOCK CYLINDER WITH VIN CODEAlternative for position 4	-
	51 25 7 681 200	LOCK CYLINDER WITH VIN CODEAlternative for position 4	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
