R1250GS 21 (K50) | Front Suspension
UPPER FORK CROSS BRACE

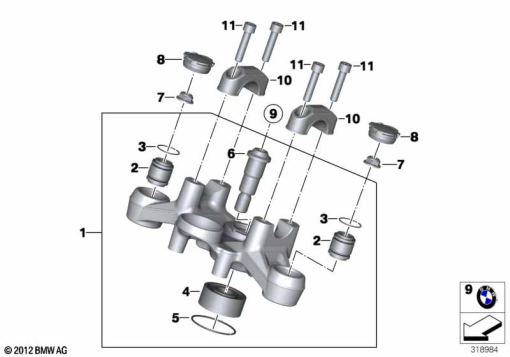

Diagram #31_1035 | 12 parts | 1 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 555 849 | UPPER FORK CROSS BRACE WITH MOUNT | 1 | |
| 1 | 31 42 8 548 904 | LOCK RING | 1 | |
| 2 | 31 42 8 545 296 | JOINT LINK | 1 | |
| 3 | 31 42 2 331 942 | SNAP RING - 26X1,2 | 1 | |
| 4 | 31 42 8 548 943 | DOUBLE ANGULAR BALL BEARING | 1 | |
| 5 | 31 42 8 548 904 | LOCK RING | 1 | |
| 6 | 32 41 8 526 442 | BOLT | 1 | |
| 7 | 31 42 7 684 743 | HEX NUT WIHT FLANGE - M10X1,25-ZNS3 | 1 | |
| 8 | 31 42 7 671 358 | COVERING CAP | 1 | |
| 9 | 31 42 8 526 438 | PLATE WITH PLATE HOLDER | 1 | |
| 10 | 32 71 8 526 443 | CLAMPING SUPPORT, TOP | 1 | |
| 11 | 07 12 9 907 373 | ISA SCREW - M8X35-8.8-ZNNIV | 1 |
