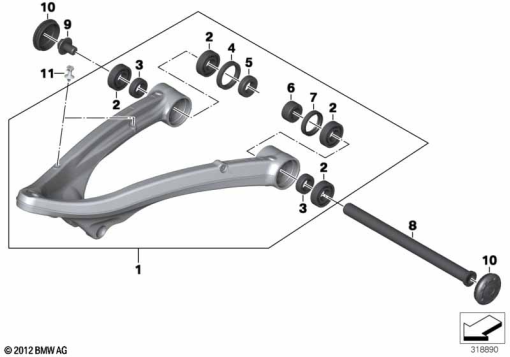

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 522 970 | TRAILING ARM | - | |
31 42 8 527 533 | TRAILING ARMAlternative for position 1 | - | ||
| 2 | 31 42 8 545 716 | GROOVED BALL BEARING - 6004 2RS C2L271 | - | |
| 3 | 31 42 8 545 026 | SPACER BUSH | - | |
| 4 | 07 11 9 908 476 | SHAFT SEAL - 35X47X7 | - | |
| 5 | 31 42 8 545 044 | SPACER BUSHING, RIGHT | - | |
| 6 | 31 42 8 545 043 | SPACER BUSHING, LEFT | - | |
| 7 | 07 11 9 906 622 | SHAFT SEAL - 32X42X7 | - | |
| 8 | 31 42 7 925 191 | AXLE | - | |
| 9 | 36 31 7 705 315 | HEX BOLT - M14X1.5 | - | |
| 10 | 31 42 8 523 195 | BEARING COVER | - | |
| 11 | 31 48 8 531 147 | CLIP RETAINER | - |
