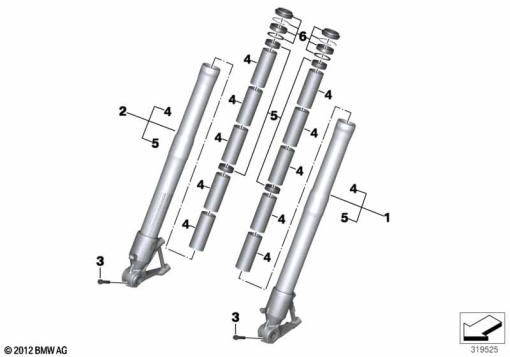

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 566 535 | INNER TUBE, BLACK, LEFT | - | |
31 42 8 532 723 | SET: SET OF SEALING ELEMENTSAlternative for position 1 | - | ||
31 42 8 566 599 | SLIDER TUBE, GOLD, LEFTAlternative for position 1 | - | ||
31 42 8 532 723 | SET: SET OF SEALING ELEMENTSAlternative for position 1 | - | ||
| 2 | 31 42 8 566 536 | INNER TUBE, BLACK, RIGHT | - | |
| - | 31 42 8 532 723 | SET: SET OF SEALING ELEMENTS | - | |
| 2 | 31 42 8 566 600 | SLIDER TUBE, GOLD, RIGHT | - | |
| - | 71 24 8 566 723 | INSTRUCTION NOTICE, PAYLOAD | - | |
| 3 | 07 12 9 907 373 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 4 | 31 42 8 529 902 | SPACER TUBE | - | |
| 5 | 31 42 8 532 724 | SET: SET OF GUIDE ELEMENTS | - | |
| 6 | 31 42 8 532 723 | SET: SET OF SEALING ELEMENTS | - |
