Technical Diagrams
R1250GS 21 (K50)
Front Suspension

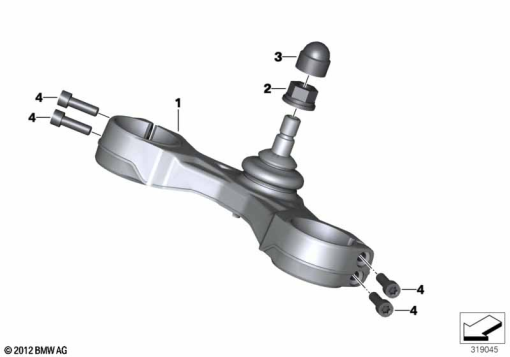

LOWER FORK CROSS BRACE
R1250GS 21 (K50) | Front Suspension
LOWER FORK CROSS BRACE
Diagram #31_1039 | 4 parts
9 diagrams in Front Suspension
100%
Download
Parts List (4)
#
Part Number
Description
Qty
1
31 42 9 443 337
FORK BRIDGE, BOTTOM, WITH MOUNTING
-
2
31 42 2 330 996
COLLAR NUT - M14X1,5 MK
-
3
31 42 2 314 711
COVER, BLACK
-
4
07 12 9 907 373
ISA SCREW - M8X35-8.8-ZNNIV
-
