R1250GS 21 (K50) | Frame, Fairing, Cases
WINDSHIELD / MOUNT

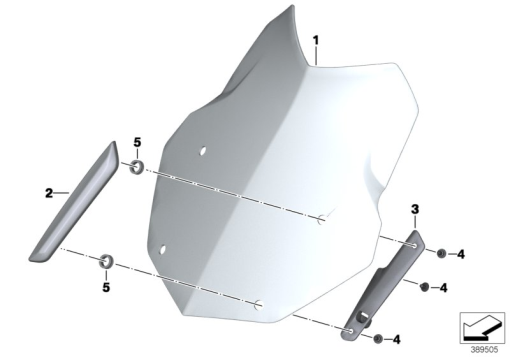

Diagram #46_1960 | 7 parts | 2 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 404 850 | WINDSHIELD | 1 | |
| 2 | 46 63 8 556 013 | TRIM, WINDSHIELD, LEFT | 1 | |
| 2 | 46 63 8 556 014 | TRIM, WINDSHIELD, RIGHT | 1 | |
| 3 | 46 63 8 556 015 | WINDSHIELD BRACKET, LEFT | 1 | |
| 3 | 46 63 8 556 016 | WINDSHIELD BRACKET, RIGHT | 1 | |
| 4 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | 1 | |
| 5 | 46 63 8 557 871 | GROMMET - DI=13,6MM | 1 |
