Technical Diagrams
R1250GS 21 (K50)
Frame, Fairing, Cases

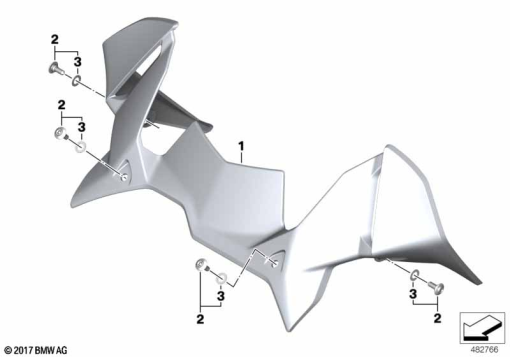

COCKPIT TRIM PANEL
R1250GS 21 (K50) | Frame, Fairing, Cases
COCKPIT TRIM PANEL
Diagram #46_1994 | 3 parts
37 diagrams in Frame, Fairing, Cases
100%
Download
Parts List (3)
#
Part Number
Description
Qty
1
46 63 8 556 639
COCKPIT TRIM PANEL
-
2
46 63 8 521 653
BODY SCREW WITH SHOULDER - M5X14,5-A2-70
-
3
46 63 8 521 659
PLASTIC WASHER - M5X12,5X0,5
-
