R1250GS 21 (K50) | Frame, Fairing, Cases

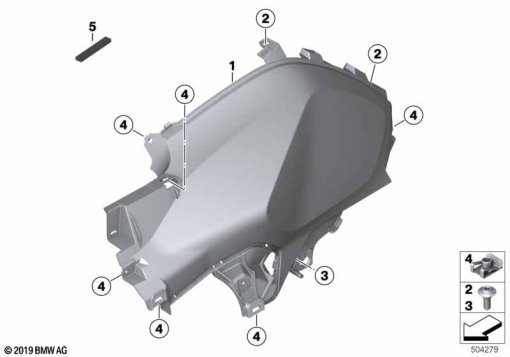

COVERING FUEL TANK
Diagram #46_1959 | 6 parts | 2 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 563 503 | TANK TRIM, LEFT - ROHTEIL / BLANK | 1 | |
| 1 | 46 63 8 563 504 | TANK TRIM, RIGHT - ROHTEIL / BLANK | 1 | |
| 2 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | 1 | |
| 3 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 4 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 5 | 46 63 2 328 779 | SEALING STRIP - L=50MM | 1 |
