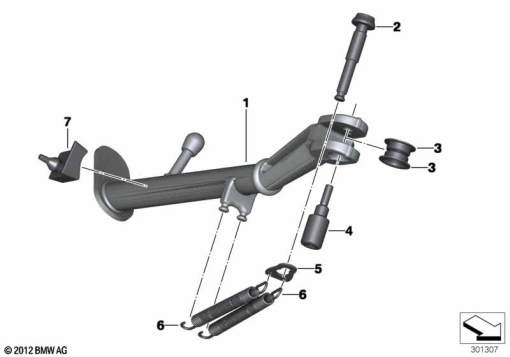

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 8 526 525 | SIDE STAND | - | |
46 53 8 526 526 | SIDE STANDAlternative for position 1 | - | ||
46 53 8 558 117 | SIDE BRACE, SHORTAlternative for position 1 | - | ||
| 2 | 46 53 8 526 537 | GRUB SCREW | - | |
| 3 | 46 53 7 679 105 | COLLAR BUSH | - | |
| 4 | 46 53 8 356 967 | SIDE-SUPPORT SCREW - M10X1-ZNNIV-MK | - | |
| 5 | 46 53 7 653 538 | METAL BRACKET | - | |
| 6 | 46 53 2 345 275 | TENSION SPRING | - | |
| 7 | 46 53 8 533 307 | STOP BUFFER | - |
