R1250GS 21 (K50) | Frame, Fairing, Cases

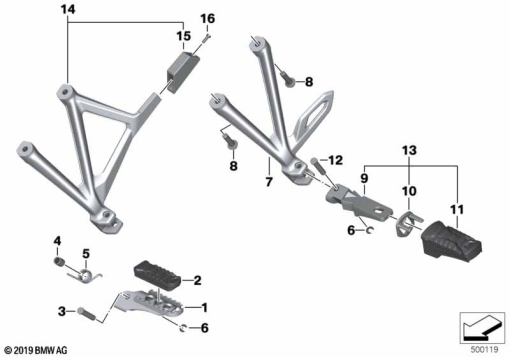

FRONT AND REAR FOOTPEG
Diagram #46_1476 | 22 parts | 13 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 526 739 | FOOTREST, WIDE, DRIVER, LEFT | 1 | |
| 1 | 46 71 8 526 740 | FOOTREST, WIDE, DRIVER, RIGHT | 1 | |
| 2 | 46 71 8 530 633 | FOOTREST RUBBER | 1 | |
| 3 | 46 71 9 446 331 | PIN - D=8MM / L=40MM (from 06/19) | 1 | |
| 4 | 46 71 8 528 781 | SPACER TUBE | 1 | |
| 5 | 46 71 8 528 782 | RETAINER SPRING | 1 | |
| 5 | 46 71 8 526 107 | RETAINER SPRING | 1 | |
| 6 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 7 | 46 71 8 526 741 | LEFT REAR FOOTREST HOLDER | 1 | |
| 7 | 46 71 8 526 742 | RIGHT REAR FOOTREST HOLDER | 1 | |
| 8 | 07 12 9 908 487 | FILLISTER-HEAD SCREW - M8X30-10.9-MK | 1 | |
| 9 | 46 71 8 528 793 | FOOTREST, REAR LEFT | 1 | |
| 9 | 46 71 8 528 794 | FOOTREST, REAR RIGHT | 1 | |
| 10 | 46 71 7 687 107 | THRUST WASHER, LEFT | 1 | |
| 10 | 46 71 7 687 108 | THRUST WASHER, RIGHT | 1 | |
| 11 | 46 71 8 530 640 | FOOTREST RUBBER REAR | 1 | |
| 12 | 46 71 7 675 691 | PIN - D=8MM/ L=37,5MM | 1 | |
| 13 | 46 71 8 528 795 | FOOTREST, REAR LEFT | 1 | |
| 13 | 46 71 8 528 792 | FOOTREST, REAR RIGHT | 1 | |
| 14 | 46 71 8 556 265 | LEFT REAR FOOTREST HOLDER | 1 | |
| 14 | 46 71 8 556 264 | RIGHT REAR FOOTREST HOLDER | 1 | |
| 15 | 46 71 8 556 271 | 0.03 | 1 |
