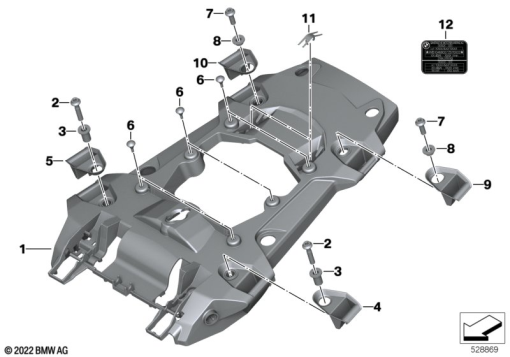

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 536 970 | REAR CARRIER PART | - | |
| 2 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| 3 | 46 62 8 543 435 | BUSHING, FRONT | - | |
| 4 | 46 62 8 533 639 | BUFFER, FRONT LEFT | - | |
| 5 | 46 62 8 533 640 | BUFFER, FRONT RIGHT | - | |
| 6 | 52 53 7 703 580 | RUBBER SUPPORT | - | |
| 7 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | - | |
| 8 | 46 62 8 543 436 | BUSHING, REAR | - | |
| 9 | 46 62 8 533 645 | BUFFER, REAR LEFT | - | |
| 10 | 46 62 8 533 646 | BUFFER, REAR RIGHT | - | |
| 12 | 71 24 1 684 208 | LABEL "TIRES" - USA / CANADA | - | |
71 24 1 678 358 | INSTRUCTION NOTICE, PAYLOADAlternative for position 12 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
