R1250GS 21 (K50) | Frame, Fairing, Cases
CENTER STAND

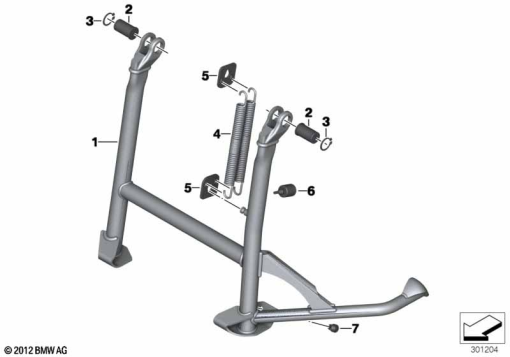

Diagram #46_1473 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 8 526 523 | CENTER STAND | 1 | |
| 1 | 46 52 8 526 524 | CENTER STAND | 1 | |
| 1 | 46 52 8 526 524 | CENTER STAND | 1 | |
| 1 | 46 52 8 534 368 | KICKSTAND LOWERING | 1 | |
| 2 | 46 52 8 526 527 | 0.02 | 1 | |
| 3 | 07 11 9 909 377 | LOCK RING - 18X1,2 | 1 | |
| 4 | 46 52 7 699 005 | TENSION SPRING - D=15 | 1 | |
| 5 | 46 52 8 526 528 | PERFORATED PLATE | 1 | |
| 6 | 46 52 8 536 805 | BUMP STOP - H=15 | 1 | |
| 6 | 46 52 7 703 598 | BUMP STOP - H=20 | 1 | |
| 7 | 31 42 8 537 724 | STOP BUFFER - 7,5X12 | 1 |
