R1250GS 21 (K50) | Frame, Fairing, Cases
TANK COVER, CENTER

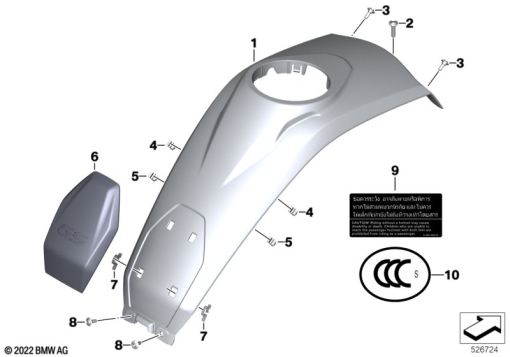

Diagram #46_1958 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 563 439 | TANK COVER, CENTER - ROHTEIL / BLANK | 1 | |
| 2 | 46 63 8 531 527 | BODY SCREW WITH SHOULDER - M6X24,5-A2-70 | 1 | |
| 3 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | 1 | |
| 4 | 46 63 8 522 828 | CLIP | 1 | |
| 5 | 07 14 8 542 040 | MOUNTING CLIP | 1 | |
| 6 | 46 63 8 533 681 | TANK PAD, BLACK | 1 | |
| 1 | 46 63 8 561 352 | SECURING CLIP | 1 | |
| 7 | 46 63 8 561 352 | SECURING CLIP | 1 | |
| 8 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 |
