R1250GS 21 (K50) | Frame, Fairing, Cases
BATTERY COVER

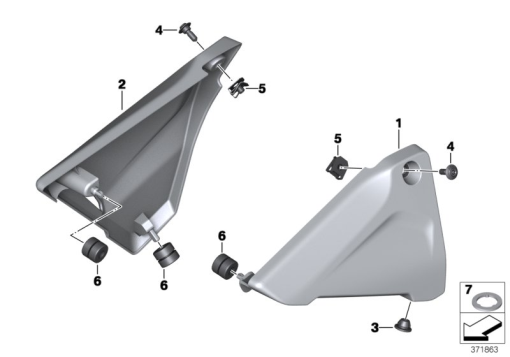

Diagram #46_1490 | 7 parts | 2 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 523 155 | BATTERY COVER, LEFT | 1 | |
| 2 | 46 63 8 523 156 | BATTERY COVER, RIGHT | 1 | |
| 3 | 46 63 8 532 168 | GROMMET | 1 | |
| 4 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | 1 | |
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 6 | 61 13 8 532 186 | RUBBER GROMMET | 1 | |
| 7 | 46 63 8 521 659 | PLASTIC WASHER - M5X12,5X0,5 | 1 |
