R1250GS 21 (K50) | Frame, Fairing, Cases

AIR DUCTING, RADIATOR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #46_1494 | 2 parts

100%

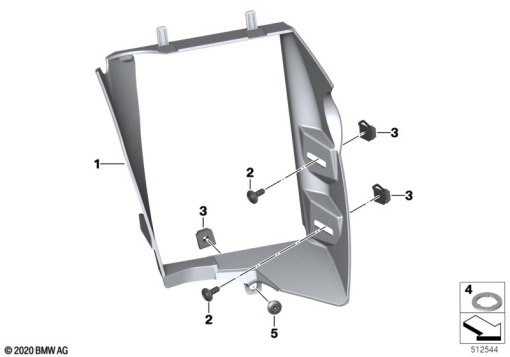

R1250GS 21 (K50) AIR DUCTING, RADIATOR exploded view parts diagram

Parts List (2)

#	Part Number	Description	Qty
2	46 63 8 568 781	BODY SCREW WITHOUT SHOULDER - M5X16-A2-70	-
5	46 63 8 568 781	BODY SCREW WITHOUT SHOULDER - M5X16-A2-70	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
