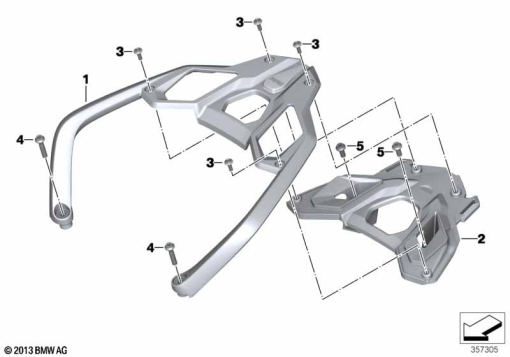

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 8 403 994 | HANDLE REAR - BLACK | - | |
46 54 8 536 955 | HANDLE REAR - WHITE-ALUMINIUMAlternative for position 1 | - | ||
| 2 | 46 54 8 530 816 | LUGGAGE RACK, LOWER SECTION | - | |
| 3 | 46 63 8 527 781 | BODY SCREW WITHOUT SHOULDER - M6X20 | - | |
| 4 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| - | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | - | |
| 5 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | - |
