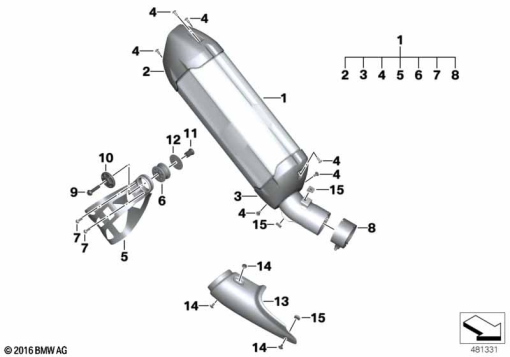

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 8 559 513 | REAR MUFFLER | - | |
18 51 8 559 521 | REAR MUFFLER, CHROME-PLATED (to 03/22)Alternative for position 1 | - | ||
18 51 8 559 521 | REAR MUFFLER, CHROME-PLATEDAlternative for position 1 | - | ||
18 51 8 559 521 | REAR MUFFLER, CHROME-PLATED (from 03/22)Alternative for position 1 | - | ||
| 2 | 18 51 8 530 584 | CAP FOR REAR MUFFLER, REAR | - | |
| 3 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
18 51 8 530 583 | CAP FOR REAR MUFFLER, FRONTAlternative for position 3 | - | ||
18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70Alternative for position 3 | - | ||
| 4 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 6 | 18 51 7 728 002 | RUBBER INSULATION ELEMENT | - | |
| 7 | 07 12 9 909 318 | FILLISTER-HEAD SCREW - M5X16-A2-70-MK | - | |
| 8 | 18 51 7 726 826 | CLAMP | - | |
| 9 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 10 | 18 51 7 708 082 | FORMED DISC | - | |
| 11 | 18 51 7 708 081 | SPACER SLEEVE | - | |
| 12 | 18 51 7 717 046 | ANTI-SCUFFING | - | |
| 13 | 18 51 7 726 831 | COVER | - | |
| 14 | 18 51 8 529 128 | BODY SCREW WITHOUT SHOULDER - M5X10-A2-70 | - | |
| 15 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
