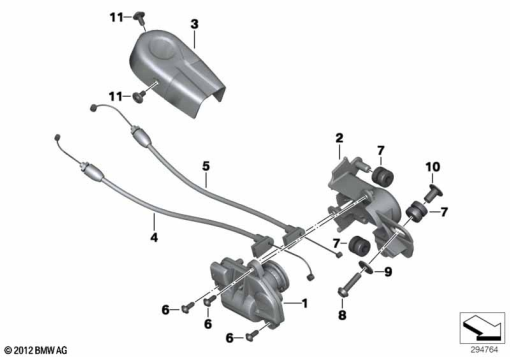

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 9 443 059 | SERVO UNIT, EXHAUST FLAP | 1 | |
| 2 | 18 51 7 726 827 | MOUNT, SERVO UNIT | 1 | |
| 3 | 18 51 8 566 945 | SPRAY GUARD, EXHAUST FLAP | 1 | |
| 4 | 18 51 7 726 829 | BOWDEN CABLE, EXHAUST FLAP, CLOSING | 1 | |
| 5 | 18 51 7 726 830 | BOWDEN CABLE, EXHAUST FLAP, OPENING | 1 | |
| 6 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | 1 | |
| 7 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | 1 | |
| 8 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 9 | 07 11 9 905 843 | WASHER - 6-200 HV-A2 | 1 | |
| 10 | 46 63 7 706 314 | SOCKET WITH SHOULDER - DI=6/L=14,5 | 1 | |
| 11 | 51 11 7 707 528 | FILLISTER HEAD SCREW WITH COLLAR - M5X10-A2-80-MK | 1 |
