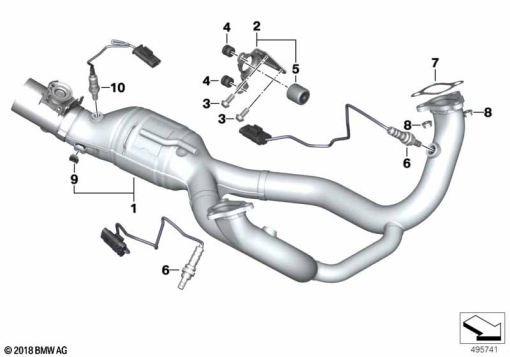

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 9 829 767 | EXHAUST MANIFOLD, POLISHED - POLIERT | 1 | |
| 6 | 18 40 7 571 440 | HEX NUT - M8 | 1 | |
| 2 | 18 51 8 564 070 | GASKET FOR EXHAUST MANIFOLD | 1 | |
| 1 | 18 51 9 829 769 | EXHAUST MANIFOLD, CHROME-PLATED - CHROM (from 03/22) | 1 | |
| 6 | 18 40 7 571 440 | HEX NUT - M8 (from 03/22) | 1 | |
| 2 | 18 51 8 564 070 | GASKET FOR EXHAUST MANIFOLD (from 03/22) | 1 | |
| 1 | 18 51 9 829 769 | EXHAUST MANIFOLD, CHROME-PLATED - CHROM (to 03/22) | 1 | |
| 6 | 18 40 7 571 440 | HEX NUT - M8 (to 03/22) | 1 | |
| 2 | 18 51 8 564 070 | GASKET FOR EXHAUST MANIFOLD (to 03/22) | 1 | |
| 2 | 18 51 8 560 428 | BRACKET, EXHAUST MANIFOLD | 1 | |
| 3 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | 1 | |
| 2 | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | 1 | |
| 4 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | 1 | |
| 5 | 18 21 1 342 283 | RUBBER MOUNTING | 1 | |
| 6 | 11 78 8 393 838 | OXYGEN SENSOR - 500MM | 1 | |
| 7 | 18 51 8 564 070 | GASKET FOR EXHAUST MANIFOLD | 1 | |
| 8 | 18 40 7 571 440 | HEX NUT - M8 | 1 | |
| 9 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 10 | 11 78 8 392 402 | OXYGEN SENSOR | 1 |
