R1250GS 21 (K50) | Engine

TIMING GEAR - INTAKE VALVE/EXHAUST VALVE

Diagram #11_7719 | 58 parts

100%

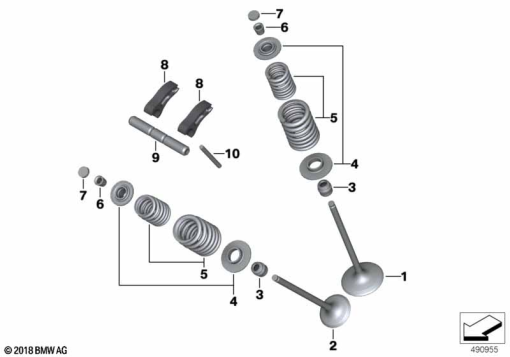

R1250GS 21 (K50) TIMING GEAR - INTAKE VALVE/EXHAUST VALVE exploded view parts diagram

Parts List (58)

#Part NumberDescriptionQty
1
11 34 9 480 920
INTAKE VALVE1
2
11 34 9 480 921
EXHAUST VALVE1
3
11 31 7 710 485
SET: REPAIR KIT VALVE SEAL RING1
4
11 34 9 444 424
SET: SET VALVE SPRING CUPS1
5
11 34 8 396 341
SET OF VALVE SPRINGS1
6
11 34 8 530 175
VALVE COLLET1
7
11 34 7 718 085
ADJUSTING PLATE - 1,72 MM (to 03/21)1
7
11 34 8 563 561
ADJUSTING PLATE - 1,72 MM1
7
11 34 7 719 083
ADJUSTING PLATE - 1,74 MM (to 03/21)1
7
11 34 8 563 563
ADJUSTING PLATE - 1,74 MM1
7
11 34 7 718 086
ADJUSTING PLATE - 1,76 MM (to 03/21)1
7
11 34 8 563 565
ADJUSTING PLATE - 1,76 MM1
7
11 34 8 563 567
ADJUSTING PLATE - 1,78 MM1
7
11 34 8 563 569
ADJUSTING PLATE - 1,80 MM1
7
11 34 8 563 571
ADJUSTING PLATE - 1,82 MM1
7
11 34 7 718 088
ADJUSTING PLATE - 1,84 MM (to 03/21)1
7
11 34 8 563 573
ADJUSTING PLATE - 1,84 MM1
7
11 34 8 563 575
ADJUSTING PLATE - 1,86 MM1
7
11 34 8 563 577
ADJUSTING PLATE - 1,88 MM1
7
11 34 7 719 087
ADJUSTING PLATE - 1,90 MM (to 03/21)1
7
11 34 8 563 579
ADJUSTING PLATE - 1,90 MM1
7
11 34 7 718 090
ADJUSTING PLATE - 1,92 MM (to 03/21)1
7
11 34 8 563 581
ADJUSTING PLATE - 1,92 MM1
7
11 34 8 563 583
ADJUSTING PLATE - 1,94 MM1
7
11 34 7 718 091
ADJUSTING PLATE - 1,96 MM (to 03/21)1
7
11 34 8 563 585
ADJUSTING PLATE - 1,96 MM1
7
11 34 7 719 089
ADJUSTING PLATE - 1,98 MM (to 03/21)1
7
11 34 8 563 587
ADJUSTING PLATE - 1,98 MM1
7
11 34 8 563 589
ADJUSTING PLATE - 2,00 MM1
7
11 34 8 563 591
ADJUSTING PLATE - 2,02 MM1
7
11 34 8 563 593
ADJUSTING PLATE - 2,04 MM1
7
11 34 7 719 091
ADJUSTING PLATE - 2,06 MM (to 03/21)1
7
11 34 8 563 595
ADJUSTING PLATE - 2,06 MM1
7
11 34 8 563 597
ADJUSTING PLATE - 2,08 MM1
7
11 34 8 563 599
ADJUSTING PLATE - 2,10 MM1
7
11 34 8 563 601
ADJUSTING PLATE - 2,12 MM1
7
11 34 8 563 603
ADJUSTING PLATE - 2,14 MM1
7
11 34 8 563 605
ADJUSTING PLATE - 2,16 MM1
7
11 34 8 563 607
ADJUSTING PLATE - 2,18 MM1
7
11 34 8 563 609
ADJUSTING PLATE - 2,20 MM1
7
11 34 8 563 611
ADJUSTING PLATE - 2,22 MM1
7
11 34 8 563 613
ADJUSTING PLATE - 2,24 MM1
7
11 34 8 563 615
ADJUSTING PLATE - 2,26 MM1
7
11 34 8 563 617
ADJUSTING PLATE - 2,28 MM1
7
11 34 8 563 619
ADJUSTING PLATE - 2,30 MM1
7
11 34 8 563 621
ADJUSTING PLATE - 2,32 MM1
7
11 34 8 563 623
ADJUSTING PLATE - 2,34 MM1
7
11 34 8 563 625
ADJUSTING PLATE - 2,36 MM1
7
11 34 8 563 627
ADJUSTING PLATE - 2,38 MM1
7
11 34 8 563 629
ADJUSTING PLATE - 2,40 MM1
7
11 34 8 563 631
ADJUSTING PLATE - 2,42 MM1
7
11 34 8 563 633
ADJUSTING PLATE - 2,44 MM1
7
11 34 8 563 635
ADJUSTING PLATE - 2,46 MM1
7
11 34 8 563 637
ADJUSTING PLATE - 2,48 MM1
7
11 34 8 563 639
ADJUSTING PLATE - 2,50 MM1
8
11 33 8 389 397
ROCKER ARM1
9
11 32 7 713 818
ROCKER ARM SHAFT1
10
11 32 7 718 079
NEEDLE ROLLER - 3,5X34,81
