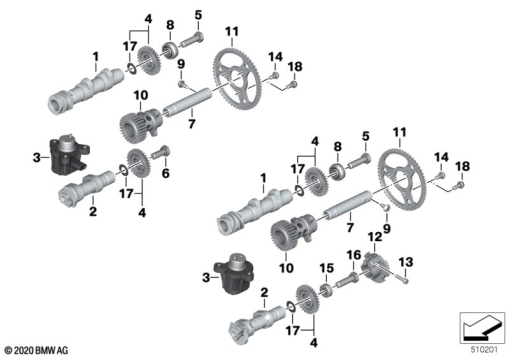

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11315A677C2 | NOCKENWELLE EINLASS RIGHT | 1 | |
| 1 | 11 31 8 394 093 | INTAKE CAMSHAFT, LEFT (to 12/22) | 1 | |
| 1 | 11315A677C1 | NOCKENWELLE EINLASS LEFT | 1 | |
| 1 | 11 31 8 394 094 | INTAKE CAMSHAFT, RIGHT (to 12/22) | 1 | |
| 2 | 11 31 8 394 095 | EXHAUST CAMSHAFT, LEFT | 1 | |
| 2 | 11 31 8 394 096 | EXHAUST CAMSHAFT, RIGHT | 1 | |
| 3 | 13 63 9 446 410 | SWITCHING CAM ADJUSTER | 1 | |
| 4 | 11 31 8 396 283 | GEAR WHEEL - 4 | 1 | |
| 4 | 11 31 8 396 282 | GEAR WHEEL - 3 | 1 | |
| 4 | 11 31 8 396 281 | GEAR WHEEL - 2 | 1 | |
| 4 | 11 31 8 396 280 | GEAR WHEEL - 1 | 1 | |
| 5 | 07 11 9 907 510 | HEX BOLT - 10X1,25X35-10.9 | 1 | |
| 6 | 07 11 9 907 514 | HEX BOLT - 10X1,25X25-10.9 | 1 | |
| 1 | 11 31 8 394 096 | EXHAUST CAMSHAFT, RIGHT | 1 | |
| 6 | 07 11 9 907 510 | HEX BOLT - 10X1,25X35-10.9 | 1 | |
| 1 | 11 31 8 394 095 | EXHAUST CAMSHAFT, LEFT | 1 | |
| 7 | 11 31 8 394 085 | AXLE | 1 | |
| 8 | 11 31 8 395 541 | BEARING | 1 | |
| 9 | 11 31 8 523 261 | CLAMPING BOLT | 1 | |
| 10 | 11 31 8 396 285 | INTERMEDIATE SHAFT, LEFT | 1 | |
| 10 | 11 31 8 396 286 | INTERMEDIATE SHAFT, RIGHT | 1 | |
| 11 | 11 31 8 394 223 | SPROCKET - Z54 | 1 | |
| 12 | 11 31 8 394 091 | RELUCTOR | 1 | |
| 1 | 11 31 8 394 092 | WASHER - D=17 | 1 | |
| 13 | 07 11 9 908 417 | FILLISTER-HEAD SCREW - M5X20-10.9-PHR | 1 | |
| 14 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | 1 | |
| 15 | 11 31 8 394 092 | WASHER - D=17 | 1 | |
| 1 | 11 31 1 540 654 | FIT BOLT - M10X1.25X35 | 1 | |
| 16 | 11 31 1 540 654 | FIT BOLT - M10X1.25X35 | 1 | |
| 1 | 11 31 8 394 092 | WASHER - D=17 | 1 | |
| 17 | 11 31 8 540 922 | FRICTION DISK | 1 |
