R1250GS 21 (K50) | Engine

TIMING AND VALVE TRAIN-TIMING CHAIN

Diagram #11_7720 | 8 parts

100%

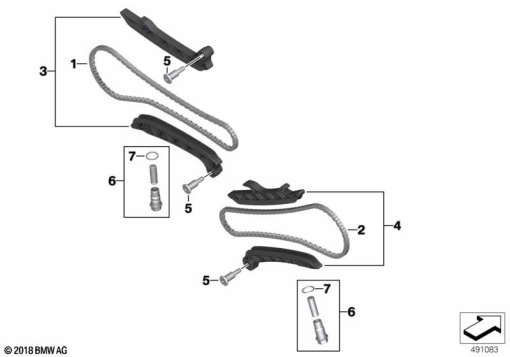

R1250GS 21 (K50) TIMING AND VALVE TRAIN-TIMING CHAIN exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
1
11 31 8 395 493
TIMING CHAIN, LEFT - 136 GLIEDER1
2
11 31 8 395 494
TIMING CHAIN, RIGHT - 130 GLIEDER1
3
11 31 9 444 426
SET: SET, CHAIN SLIDE RAIL, RIGHT1
4
11 31 9 444 425
SET: SET, CHAIN SLIDE RAIL, LEFT1
5
11 31 8 534 119
BEARING SCREW1
6
11 31 9 444 423
SET: KIT CHAIN TENSIONER RIGHT1
6
11 31 7 108 586
SET: SET CHAIN TENSIONER LEFT1
7
12 14 1 748 398
O-RING - 17X31
