R1250GS 21 (K50) | Engine

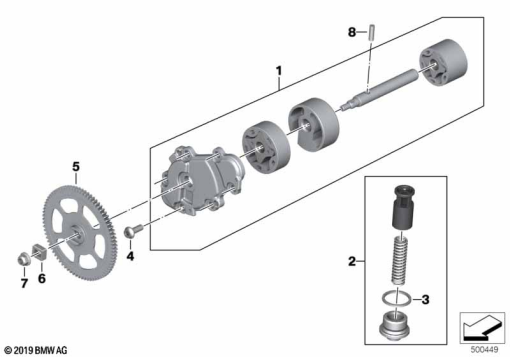

OIL PUMP WITH FILTER SCREEN AND DRIVE
Diagram #11_7727 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 8 394 434 | OIL PUMP | 1 | |
| 2 | 11 41 8 545 700 | SET: PRESSURE CONTROL VALVE SET | 1 | |
| 3 | 07 11 9 963 384 | GASKET RING - A24X29-AL | 1 | |
| 4 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 5 | 11 41 8 358 859 | OIL PUMP SPROCKET | 1 | |
| 6 | 11 41 8 551 163 | DRIVING DOG | 1 | |
| 7 | 07 11 9 902 751 | HEX NUT - M6-8-ZNS3 | 1 | |
| 8 | 11 41 7 687 398 | PIN - 5X16,8 | 1 |
