R1250GS 21 (K50) | Engine

COMPENSATING SHAFT

Diagram #11_5166 | 4 parts

100%

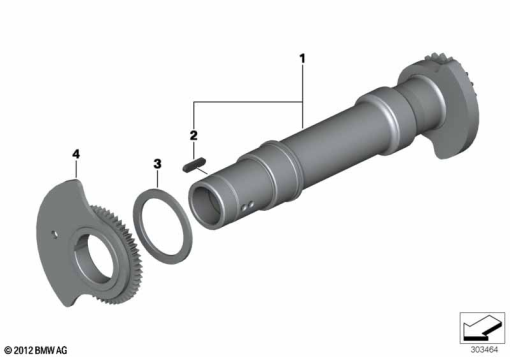

R1250GS 21 (K50) COMPENSATING SHAFT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 27 8 565 628
COMPENSATING SHAFT-
2
07 11 9 904 538
PARALLEL KEY-
3
11 27 8 530 257
STOP DISK - T=3,08-
4
11 27 8 565 630
BALANCE WEIGHT WITH GEAR-
