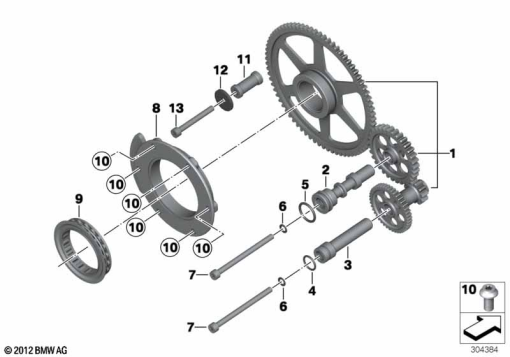

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 26 8 565 652 | SET: SET OF GEARS FOR STARTER ASSEMBLY | 1 | |
| 2 | 11 26 8 524 908 | AXLE, IDLER GEAR | 1 | |
| 3 | 11 26 8 529 967 | AXLE, DOUBLE GEAR | 1 | |
| 4 | 07 11 9 905 574 | O-RING - 14X2 | 1 | |
| 5 | 07 11 9 905 595 | O-RING - 19X2,5-N-FPM 83 | 1 | |
| 6 | 11 26 8 529 972 | WASHER-GASKET - M6 | 1 | |
| 7 | 07 12 9 908 692 | SCREW - M6X80 MKL | 1 | |
| 8 | 11 26 8 530 284 | FREE WHEEL HOUSING | 1 | |
| 8 | 11 26 8 529 979 | FREE WHEEL HOUSING (to 02/15) | 1 | |
| – | 11 21 7 719 627 | CRANKSHAFT (to 02/15) | 1 | |
| 9 | 11 26 8 530 281 | FREE WHEEL | 1 | |
| 10 | 11 26 8 555 203 | ISA SCREW - M8X16-12.9-MKL | 1 | |
| 11 | 11 26 8 530 309 | SLEEVE | 1 | |
| 12 | 11 26 8 529 970 | WASHER - 6,1X25X3MM | 1 | |
| 13 | 07 11 9 908 436 | FILLISTER-HEAD SCREW - M6X50-8.8-MKL | 1 |
