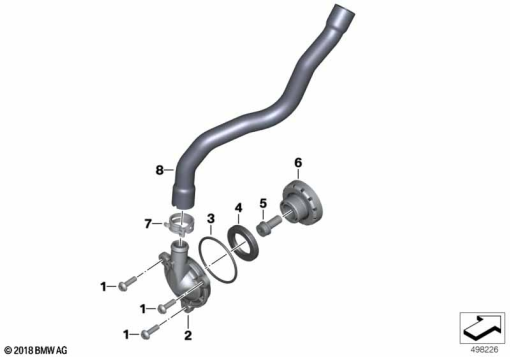

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 2 | 11 15 8 529 307 | COVER FOR ENGINE AIR DISCHARGE, BLACK | 1 | |
| 1 | 11 15 8 530 472 | O-RING - 53X3 | 1 | |
| 3 | 11 15 8 530 472 | O-RING - 53X3 | 1 | |
| 4 | 11 15 8 529 308 | SHAFT SEAL - 30X47X7 | 1 | |
| 5 | 07 12 9 907 515 | ISA SCREW WITH WASHER - M10X1X25 | 1 | |
| 6 | 11 15 8 529 306 | BREATHER | 1 | |
| 7 | 11 15 7 679 174 | HOSE CLAMP - D=28MM | 1 | |
| 8 | 11 15 8 522 029 | HOSE, POSITIVE CRANKCASE VENTILATION | 1 |
