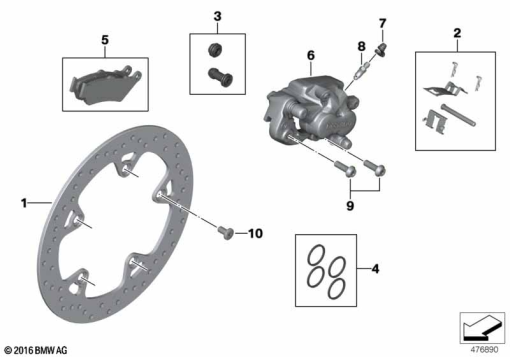

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 8 526 568 | REAR BRAKE DISC | - | |
| 5 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 34 21 8 535 157 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| - | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| - | 34 21 7 674 607 | SET OF BRAKE CALIPER PISTON SEALS - D=28MM | - | |
| 5 | 34 21 8 562 163 | SET: SET OF BRAKE PADS, SINTERED METAL | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 5 | - | ||
| - | 34 21 8 535 157 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 6 | 34 21 8 535 160 | BRAKE CALIPER, REAR - BLACK | - | |
34 21 8 556 255 | BRAKE CALIPER, REAR - GOLDAlternative for position 6 | - | ||
| 7 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 8 | 34 21 8 535 153 | VENT SCREW | - | |
| 9 | 46 63 9 908 452 | FILLISTER-HEAD SCREW - M8X30-8.8-MK | - | |
| 10 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
