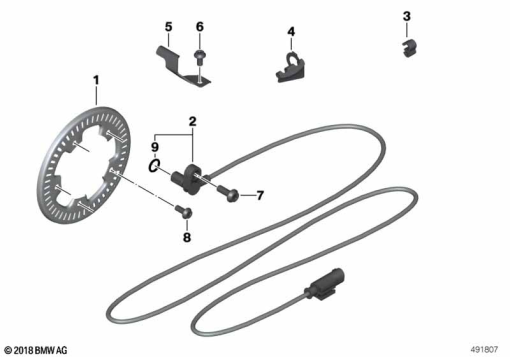

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 9 480 186 | SENSOR RING - Z=48 | - | |
| 2 | 34 52 9 443 105 | WHEELSPEED SENSOR (to 04/23) | - | |
34525A781C5 | WHEEL SPEED SENSORAlternative for position 2 | - | ||
34 52 8 551 611 | WHEELSPEED SENSORAlternative for position 2 | - | ||
| 3 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | - | |
| 4 | 34 52 8 532 553 | CABLE GUIDE | - | |
| 5 | 34 52 8 532 568 | CABLE GUIDE | - | |
| 6 | 07 12 9 907 433 | TORX BOLT - M5X10-8.8-ZNNIV | - | |
| 7 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | - | |
| 8 | 07 12 9 907 433 | TORX BOLT - M5X10-8.8-ZNNIV | - | |
| 9 | 34 52 8 536 789 | O-RING | - |
