R1250GS 21 (K50) | Brakes

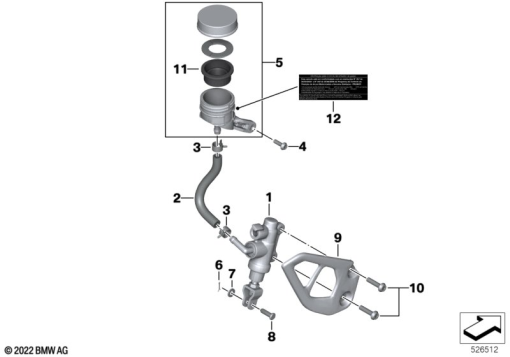

REAR BRAKE MASTER CYLINDER W CONTAINER
Diagram #34_2071 | 11 parts | 2 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 8 522 398 | REAR BRAKE MASTER CYLINDER | 1 | |
| 2 | 34 31 8 537 504 | HOSE - 110 MM | 1 | |
| 3 | 32 72 8 543 915 | HOSE CLAMP | 1 | |
| 4 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 5 | 32 72 8 526 778 | EXPANSION TANK | 1 | |
| 6 | 07 11 9 905 447 | SPLIT PIN - 1,6X16 | 1 | |
| 7 | 07 11 9 905 218 | WASHER - 6-200 HV-A4 | 1 | |
| 8 | 07 11 9 906 902 | PIN - 6X20 | 1 | |
| 9 | 46 71 8 554 072 | HEEL GUARD, RIGHT - BLACK | 1 | |
| 10 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 11 | 32 72 7 722 873 | BOOT | 1 |
