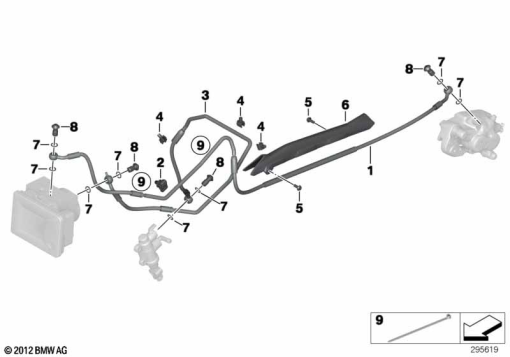

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 7 721 227 | BRAKE CIRCUIT PIPE, REAR | - | |
| 2 | 34 32 7 727 425 | BRACKET, BRAKE PIPE, DOUBLE | - | |
| 3 | 34 32 7 721 228 | BRAKE PIPE CONTROL CIRCUIT, REAR | - | |
| 4 | 34 32 7 685 395 | HOLDER | - | |
| 5 | 07 12 9 909 577 | TORX SCREW - M5X12-8.8-MKL | - | |
| 6 | 34 32 8 526 533 | BRAKE HOSE GUIDE | - | |
| 7 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 8 | 34 32 9 445 087 | HOLLOW BOLT - M10X1 | - | |
| 9 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
