R1250GS 21 (K50) | Brakes

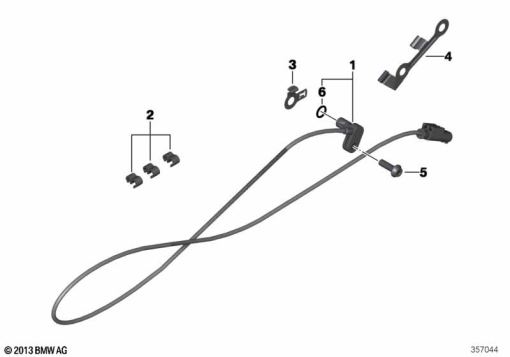

ROTATIONAL-SPEED SENSOR, REAR
Diagram #34_2076 | 7 parts | 4 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 9 443 105 | WHEELSPEED SENSOR (to 04/23) | 1 | |
| 1 | 34525A781C5 | WHEEL SPEED SENSOR | 1 | |
| 2 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | 1 | |
| 3 | 34 52 8 532 554 | CABLE GUIDE | 1 | |
| 4 | 34 52 8 532 555 | CABLE GUIDE | 1 | |
| 5 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 6 | 34 52 8 536 789 | O-RING | 1 |
