R1250GS 21 (K50) | Accessories

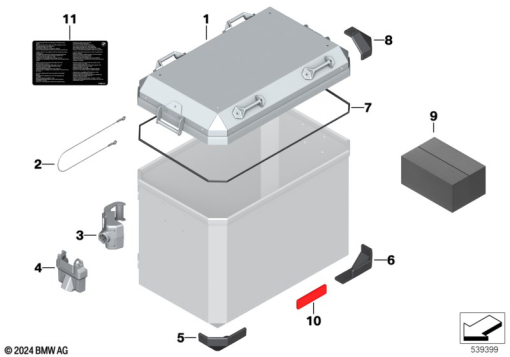

SEP COMPONENTS, ALUMINUM CASE/TOPCASE
Diagram #77_0636 | 15 parts | 2 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 41 1 539 592 | CASE LID | 1 | |
| 1 | 77 41 8 543 990 | CASE COVER, COMPLETE | 1 | |
| 1 | 77 43 1 539 596 | ALUMINUM TOPCASE LID | 1 | |
| 1 | 77 43 2 472 178 | ALUMINUM CASE LID BLACK | 1 | |
| 2 | 71 60 7 695 073 | CHECK STRAP - L=450MM | 1 | |
| 3 | 77 41 1 540 849 | CASE SUSPENSION CATCH W/O TUMBLER, LEFT | 1 | |
| 3 | 77 41 1 540 850 | CASE SUSPENSION CATCH W/O TUMBLER, RIGHT | 1 | |
| 4 | 77 41 1 540 847 | CAP LOCK WITHOUT CYLINDER | 1 | |
| 5 | 71 60 7 694 177 | COVER, BOTTOM LEFT | 1 | |
| 6 | 71 60 7 694 178 | COVER, BOTTOM RIGHT | 1 | |
| 7 | 71 60 7 712 837 | GASKET | 1 | |
| 8 | 71 60 7 694 175 | COVER, LUGGAGE CASE COVER | 1 | |
| 9 | 77 41 8 562 139 | SET: REP. SET SEAL FASTENING | 1 | |
| 10 | 63 14 7 671 349 | REAR REFLECTOR RED | 1 | |
| 11 | 71215A75BC9 | INFORMATION LABEL CASE/TOPCASE | 1 |
