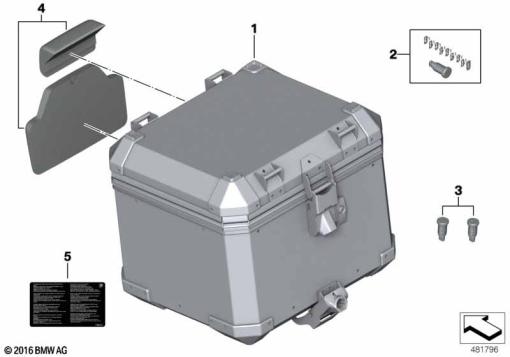

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 43 1 539 595 | ALUMINUM TOPCASE | - | |
77 43 2 472 170 | ALUMINUM TOPCASE BLACKAlternative for position 1 | - | ||
| - | 46 54 8 522 360 | LUGGAGE GRID | - | |
| 2 | 77 49 8 544 517 | SET: REP.KIT F LOCK CYLINDER | - | |
| 4 | 77 44 8 546 808 | SET: SET BACKREST CUSHION TOP CASE | - | |
| 5 | 71215A75BC9 | INFORMATION LABEL CASE/TOPCASE | - | |
77 43 8 568 814 | SIGN MAXIMUM SPEED/PAYLOADAlternative for position 5 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
