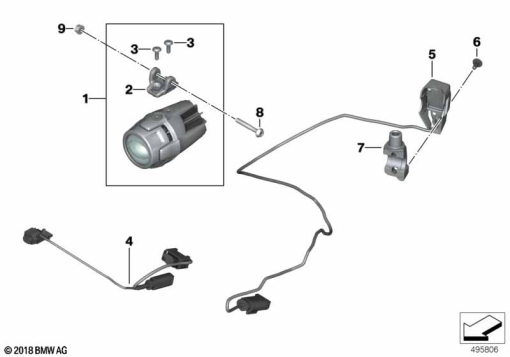

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 17 9 457 322 | LED AUXILIARY HEADLIGHT "NANO" | 1 | |
| 1 | 77 51 1 542 180 | SET: OF BRACKETS LED AUXILIARY HEADLIGH - NANO | 1 | |
| 1 | 61 12 8 395 601 | WIRING HARNESS F.LED AUXILIARY HEADLIGHT - NANO | 1 | |
| 2 | 63 17 8 414 891 | ADAPTER FOR AUXILIARY DRIVING LIGHT (from 08/20) | 1 | |
| 3 | 46 63 8 521 655 | BODY SCREW WITH SHOULDER - M5X20 | 1 | |
| 3 | 46 63 8 550 994 | BODY SCREW WITHOUT SHOULDER - M5X20 MK | 1 | |
| 4 | 61 12 8 395 601 | WIRING HARNESS F.LED AUXILIARY HEADLIGHT - NANO | 1 | |
| 6 | 34 32 7 682 157 | HOLDER | 1 | |
| 5 | 61 31 8 394 256 | EXTRA SWITCH, DRIVING LIGHT | 1 | |
| 6 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | 1 | |
| 7 | 32 72 8 534 366 | PIPE CLAMP LEFT | 1 | |
| 8 | 07 12 9 907 398 | FILLISTER-HEAD SCREW - M6X40-8.8-ZNNIV | 1 | |
| 9 | 07 11 9 905 544 | HEX NUT WITH PLATE - M6-8-ZNNIV SI | 1 |
