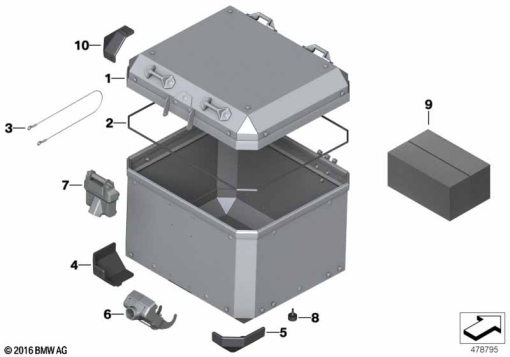

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 43 2 472 171 | ALUMINIUM TOPCASE LID BLACK | 1 | |
| 1 | 77 43 1 539 596 | ALUMINUM TOPCASE LID | 1 | |
| 2 | 71 60 7 712 838 | GASKET | 1 | |
| 3 | 71 60 7 699 871 | CHECK STRAP - L=500MM | 1 | |
| 4 | 71 60 7 694 177 | COVER, BOTTOM LEFT | 1 | |
| 5 | 71 60 7 694 178 | COVER, BOTTOM RIGHT | 1 | |
| 6 | 77 43 1 540 846 | IMMOBILIZING LOCK WITHOUT CYLINDER | 1 | |
| 7 | 77 41 1 540 847 | CAP LOCK WITHOUT CYLINDER | 1 | |
| 8 | 71 60 7 688 895 | BUMP STOP | 1 | |
| 9 | 77 41 8 562 139 | SET: REP. SET SEAL FASTENING | 1 | |
| – | 77 43 8 520 064 | ALUMINUM TOPCASE | 1 | |
| 10 | 71 60 7 694 175 | COVER, LUGGAGE CASE COVER | 1 |
