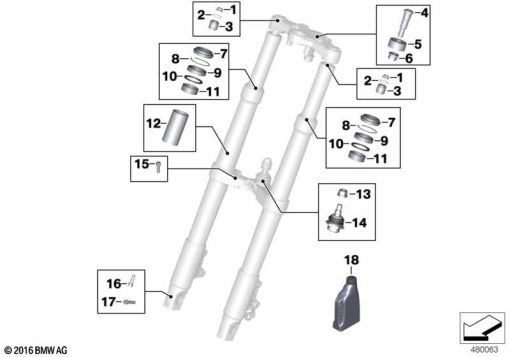

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 684 743 | HEX NUT WIHT FLANGE - M10X1,25-ZNS3 | - | |
| 2 | 31 42 2 331 942 | SNAP RING - 26X1,2 | - | |
| 3 | 31 42 8 545 296 | JOINT LINK | - | |
| 4 | 31 42 7 676 129 | BOLT | - | |
| 5 | 31 42 2 314 723 | ANGULAR BALL BEARING - 47X20X20,6 | - | |
| 6 | 31 42 2 330 996 | COLLAR NUT - M14X1,5 MK | - | |
| 7 | 31 42 7 666 223 | DUST PROTECTION COLLAR - D=41MM | - | |
| 8 | 31 42 7 666 224 | SUPPORTING RING | - | |
| 9 | 31 42 7 666 225 | GASKET RING | - | |
| 10 | 31 42 7 666 226 | SHIM | - | |
| 11 | 31 42 7 666 227 | GUIDE BUSH | - | |
| 12 | 31 42 7 674 810 | PIPE | - | |
| 13 | 31 42 2 330 996 | COLLAR NUT - M14X1,5 MK | - | |
| 14 | 31 42 7 652 644 | BALL JOINT - M14X1,5-MK | - | |
| 15 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 16 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 17 | 07 12 9 904 068 | ISA SCREW - M8X35-8.8-ZNS3 | - | |
| 18 | 83 19 2 460 735 | TELESCOPIC FORKS OIL TYPE 2 - 1000ML | - |
