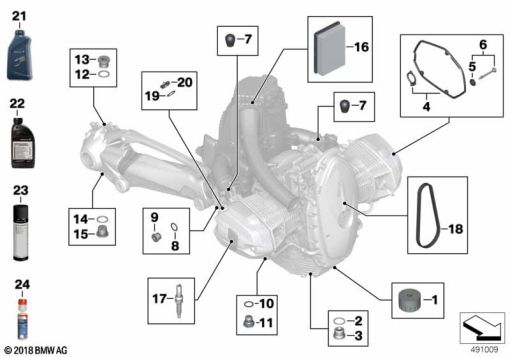

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 7 673 541 | OIL FILTER | - | |
| 2 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 3 | 07 11 9 902 292 | SCREW PLUG - M16X1,5 | - | |
| 4 | 11 12 7 673 086 | EXTERIOR GASKET | - | |
11 12 7 673 087 | INTERIOR GASKETAlternative for position 4 | - | ||
| 5 | 11 12 7 654 978 | RUBBER BUSH | - | |
| 6 | 11 12 7 658 634 | ISA SCREW WITH BUSH - ZNS3 | - | |
| 7 | 13 54 7 694 924 | PROTECTION CAP | - | |
| 8 | 07 11 9 963 300 | GASKET RING - A18X22-AL | - | |
| 9 | 23 00 7 721 088 | SCREW PLUG, MAGNETIC - M18X1,5 | - | |
| 10 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - | |
| 11 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | - | |
| 12 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 13 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 14 | 33 11 7 695 219 | O-RING - 11,2X1,8 | - | |
| 15 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | - | |
| 16 | 13 71 7 672 552 | AIR FILTER ELEMENT | - | |
| 17 | 12 12 7 728 634 | SPARK PLUG - NGK DCPR8EKC | - | |
| 18 | 12315A95697 | RIBBED V-BELT - 4PK592 | - | |
12315A95697 | RIBBED V-BELT - 4PK592Alternative for position 18 | - | ||
12315A95697 | RIBBED V-BELT - 4PK592Alternative for position 18 | - | ||
12 31 1 341 779 | RIBBED V-BELT - 4PK611Alternative for position 18 | - | ||
12315A95696 | RIBBED V-BELT - 4PK611Alternative for position 18 | - | ||
| 19 | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 20 | 11 12 7 677 368 | OIL COVER LID | - | |
| 21 | 83 21 2 365 963 | MOTOR OIL ADVANTEC 15W-50 - 1L | - | |
| 22 | 83 22 2 445 460 | BMW SYNTHETIC OSP - 1L | - | |
| 23 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | - | |
83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500MLAlternative for position 23 | - | ||
| 24 | 11 00 7 694 896 | COMBUSTION CHAMBER CLEANER - 250ML | - |
