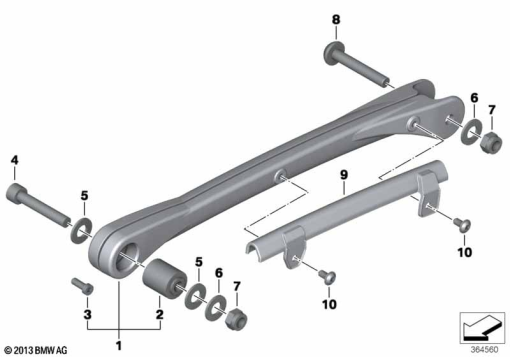

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 7 672 457 | SILVER ROD - L=380MM | - | |
| 2 | 33 35 8 382 788 | RUBBER MOUNTING | - | |
| 3 | 07 12 9 905 261 | ISA SCREW - M6X16-8.8-MK | - | |
| 4 | 07 12 9 906 213 | ISA SCREW - M10X55-10.9-MK | - | |
| - | 07 11 9 904 670 | FLANGE NUT - M10-10-ZNS3 | - | |
| 5 | 33 17 7 655 783 | STOP DISK | - | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 07 11 9 904 670 | FLANGE NUT - M10-10-ZNS3 | - | |
07 12 9 964 672 | SELF-LOCKING HEX NUT - M10Alternative for position 7 | - | ||
| 8 | 07 12 9 906 213 | ISA SCREW - M10X55-10.9-MK | - | |
| 9 | 34 32 7 675 056 | COVER | - | |
| 10 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | - |
