R1200GS 05-07 (K25) | Rear Axle & Suspension

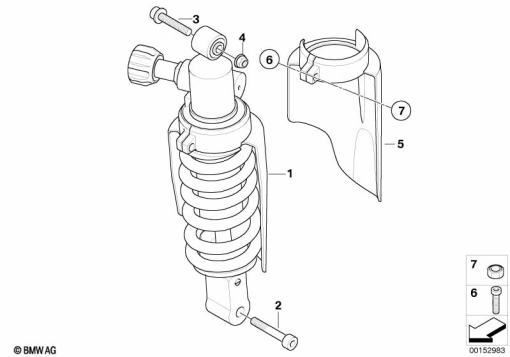

SPRING STRUT, REAR
Diagram #33_1214 | 10 parts | 5 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 8 529 486 | SPRING STRUT, REAR | 1 | |
| 2 | 07 12 9 907 435 | ISA SCREW - M10X80-10.9-MK | 1 | |
| 3 | 33 53 7 686 734 | FIT BOLT - M10X65X1,25MK | 1 | |
| 4 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | 1 | |
| 5 | 33 53 7 700 667 | MUDGUARD, SPRING STRUT | 1 | |
| – | 33 53 7 666 418 | SPRING STRUT, REAR | 1 | |
| 5 | 33 53 7 702 451 | MUDGUARD, SPRING STRUT | 1 | |
| – | 33 53 7 692 258 | SPRING STRUT, REAR | 1 | |
| 6 | 07 12 9 904 792 | ISA SCREW - M5X20 | 1 | |
| 7 | 07 12 9 905 778 | HEX NUT - M5-A2-70 | 1 |
