R1200GS 05-07 (K25) | Rear Axle & Suspension

REAR WHEEL SWINGING ARM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_1226 | 23 parts

100%

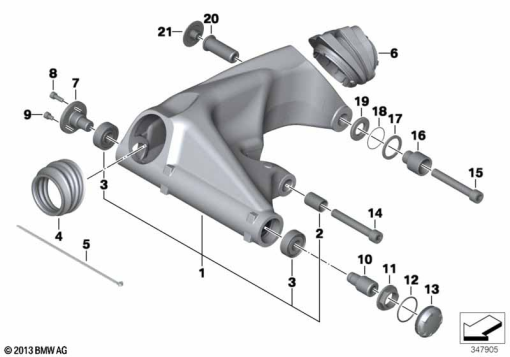

R1200GS 05-07 (K25) REAR WHEEL SWINGING ARM exploded view parts diagram

Parts List (23)

#	Part Number	Description	Qty
1	33 17 8 523 870	REAR WHEEL SWINGING ARM, SILVER	-
2	33 17 2 338 103	FIT BUSH	-
3	33 17 2 311 729	TAPERED ROLLER BEARING - 17X40X13,25	-
4	33 17 7 685 599	RUBBER BOOT	-
5	33 17 7 687 623	CABLE TIE	-
6	33 17 7 685 052	RUBBER BOOT	-
7	33 17 2 332 569	PIVOT PIN, RIGHT	-
8	07 12 9 904 588	ISA SCREW - M6X16-8.8-ZNS3	-
10	33 17 2 335 110	PIVOT PIN	-
11	33 17 2 335 111	COLLAR NUT - M24X1,25-ZNNIV	-
12	07 11 9 905 268	O-RING - 39X2	-
13	31 42 7 706 048	COVER FOR TELELEVER, MILLED	-
	46 51 7 694 153	COVERING CAPAlternative for position 13	-
14	07 12 9 907 435	ISA SCREW - M10X80-10.9-MK	-
15	07 12 9 905 658	ISA SCREW - M12X1,5X80-MK	-
16	33 17 7 665 148	PIVOT PIN	-
-	33 11 7 684 996	GASKET RING - 38X30X2,5	-
17	33 11 7 684 996	GASKET RING - 38X30X2,5	-
18	07 11 9 904 693	O-RING - 34X1	-
19	33 17 7 672 817	SPACER RING	-
20	33 17 8 375 112	PIVOT PIN	-
	33355A65AB4	PIVOT PINAlternative for position 20	-
21	33 17 7 674 694	COVER	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
