R1200GS 05-07 (K25) | Rear Axle & Suspension

BEARING FOR PINION

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_1626 | 31 parts

100%

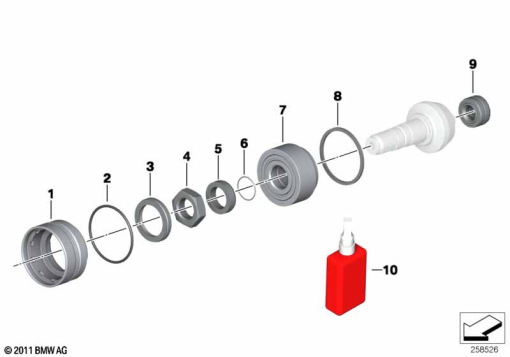

R1200GS 05-07 (K25) BEARING FOR PINION exploded view parts diagram

Parts List (31)

#	Part Number	Description	Qty
1	33 11 7 665 034	THREADED RING	-
2	07 11 9 904 691	O-RING - 58X2,62	-
3	33 11 7 722 888	SHAFT SEAL - 35X47X7,5	-
4	33 12 1 450 497	NUT - M24X1,5	-
5	33 11 7 701 691	COMPRESSION RING	-
6	33 11 7 698 274	O-RING - 24X1,1	-
7	33 11 7 699 866	AX BEARING - 62X25X25,4	-
8	33 12 1 230 717	SHIM - 1,500MM	-
	33 12 1 230 718	SHIM - 1,550MMAlternative for position 8	-
	33 12 1 230 719	SHIM - 1,600MMAlternative for position 8	-
	33 12 1 230 720	SHIM - 1,650MMAlternative for position 8	-
	33 12 1 230 721	SHIM - 1,700MMAlternative for position 8	-
	33 12 1 230 722	SHIM - 1,750MMAlternative for position 8	-
	33 12 1 230 723	SHIM - 1,800MMAlternative for position 8	-
	33 12 1 230 724	SHIM - 1,850MMAlternative for position 8	-
	33 12 1 230 725	SHIM - 1,900MMAlternative for position 8	-
	33 12 1 230 726	SHIM - 1,950MMAlternative for position 8	-
	33 12 1 230 727	SHIM - 2,000MMAlternative for position 8	-
	33 12 1 230 728	SHIM - 2,050MMAlternative for position 8	-
	33 12 1 230 729	SHIM - 2,100MMAlternative for position 8	-
	33 12 1 230 730	SHIM - 2,150MMAlternative for position 8	-
	33 12 1 230 731	SHIM - 2,200MMAlternative for position 8	-
	33 12 1 230 732	SHIM - 2,250MMAlternative for position 8	-
	33 12 1 230 733	SHIM - 2,300MMAlternative for position 8	-
	33 12 1 230 734	SHIM - 2,350MMAlternative for position 8	-
	33 12 1 230 735	SHIM - 2,400MMAlternative for position 8	-
	33 12 1 230 736	SHIM - 2,450MMAlternative for position 8	-
	33 12 1 230 737	SHIM - 2,500MMAlternative for position 8	-
9	33 11 7 683 038	NEEDLE BEARING - 30X16 (to 08/06)	-
	33 11 7 698 132	NEEDLE BEARING - 32X16X3,5 (from 08/06)Alternative for position 9	-
10	33 11 2 328 736	ADHESIVE LOCTITE 577 - 50ML	-
