R1200GS 05-07 (K25) | Rear Axle & Suspension

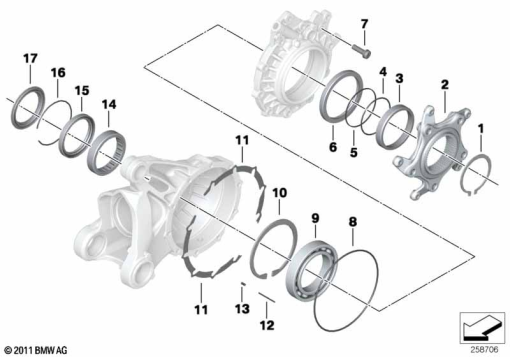

BEARING, RING GEAR COVER WITH VENT
Diagram #33_1627 | 28 parts | 1 available in shop
100%
Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 905 076 | LOCK RING - 62X2 | 1 | |
| 2 | 33 11 7 722 831 | FLANGE | 1 | |
| 3 | 33 11 7 722 797 | GUIDE RING | 1 | |
| 4 | 07 11 9 907 129 | O-RING - 62X2-N-FPM 80 | 1 | |
| 5 | 33 11 7 727 059 | BACKUP RING | 1 | |
| 6 | 33 11 7 722 800 | SHAFT SEAL - 75X90X8,5 | 1 | |
| 7 | 33 11 7 686 682 | FILLISTER HEAD SCREW - M8X30 | 1 | |
| 8 | 33 11 7 695 218 | O-RING - 138X2,62 | 1 | |
| 9 | 33 11 7 722 799 | GROOVED BALL BEARING | 1 | |
| 10 | 07 11 9 904 689 | LOCK RING - 100X3 | 1 | |
| 11 | 33 11 7 690 608 | ADJUSTING WASHER - 0,7MM | 1 | |
| 11 | 33 11 7 690 609 | ADJUSTING WASHER - 0,75MM | 1 | |
| 11 | 33 11 7 690 610 | ADJUSTING WASHER - 0,8MM | 1 | |
| 11 | 33 11 7 690 611 | ADJUSTING WASHER - 0,85MM | 1 | |
| 11 | 33 11 7 690 612 | ADJUSTING WASHER - 0,9MM | 1 | |
| 11 | 33 11 7 690 613 | ADJUSTING WASHER - 0,95MM | 1 | |
| 11 | 33 11 7 690 614 | ADJUSTING WASHER - 1,0MM | 1 | |
| 11 | 33 11 7 690 615 | ADJUSTING WASHER - 1,05MM | 1 | |
| 11 | 33 11 7 690 616 | ADJUSTING WASHER - 1,1MM | 1 | |
| 11 | 33 11 7 690 617 | ADJUSTING WASHER - 1,15MM | 1 | |
| 11 | 33 11 7 690 618 | ADJUSTING WASHER - 1,2MM | 1 | |
| 11 | 33 11 7 690 619 | ADJUSTING WASHER - 1,25MM | 1 | |
| 12 | 07 11 9 905 666 | ROLL PIN - 2X36 | 1 | |
| 13 | 07 11 9 905 584 | ROLL PIN - 3,5X8-ST | 1 | |
| 14 | 33 11 7 674 121 | NEEDLE SLEEVE | 1 | |
| 15 | 33 11 7 722 890 | SHAFT SEAL - 59,8X75X8 | 1 | |
| 16 | 33 11 7 675 132 | LOCK RING - 75X2 | 1 | |
| 17 | 33 11 7 665 055 | COVER | 1 |
