R1200GS 05-07 (K25) | Frame, Fairing, Cases

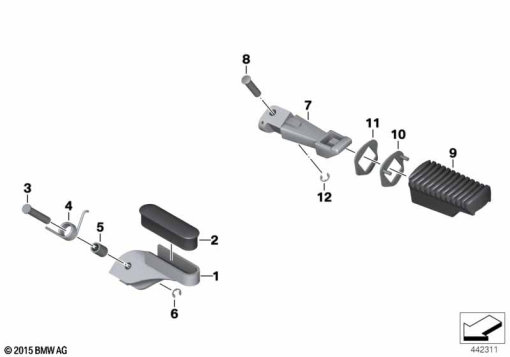

FRONT AND REAR FOOTPEG
Diagram #46_0854 | 20 parts | 7 available in shop
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 729 281 | FOOTREST, LEFT | 1 | |
| 1 | 46 71 7 729 282 | FOOTREST, RIGHT | 1 | |
| – | 07 11 9 904 324 | WASHER - 8,4-ST-ZNS3 | 1 | |
| 2 | 46 71 1 242 109 | FOOTREST RUBBER | 1 | |
| 3 | 46 71 7 680 530 | PIN - L=42MM | 1 | |
| 4 | 46 71 7 673 821 | RETAINER SPRING | 1 | |
| 5 | 46 71 1 242 019 | SPACER TUBE | 1 | |
| 6 | 07 11 9 901 545 | SECURING CLIP | 1 | |
| 6 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 6 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 7 | 46 71 2 310 403 | FOOTREST, REAR LEFT | 1 | |
| 7 | 46 71 2 310 404 | FOOTREST, REAR RIGHT | 1 | |
| 8 | 46 71 7 668 644 | PIN - L=32,5MM | 1 | |
| 9 | 46 71 7 664 225 | FOOTREST RUBBER | 1 | |
| 10 | 46 71 7 687 107 | THRUST WASHER, LEFT | 1 | |
| 10 | 46 71 7 687 108 | THRUST WASHER, RIGHT | 1 | |
| 11 | 46 71 7 670 317 | STOP DISK | 1 | |
| 12 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 12 | 07 11 9 901 545 | SECURING CLIP | 1 | |
| 12 | 07 11 9 909 941 | CIRCLIP | 1 |
