R1200GS 05-07 (K25) | Frame, Fairing, Cases

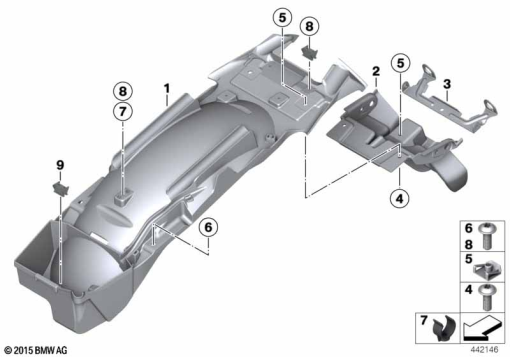

WHEEL COVER, REAR
Diagram #46_0846 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 7 667 682 | REAR WHEEL COVER | 1 | |
| 2 | 46 62 7 667 683 | LICENSE PLATE HOLDER | 1 | |
| 3 | 46 62 7 668 781 | MOUNT FOR TAILLIGHT | 1 | |
| 4 | 46 63 7 677 604 | OVAL-HEAD MACHINE SCREW, BLACK - M5X16 | 1 | |
| 5 | 46 63 7 658 638 | FLAT NUT - M5 | 1 | |
| 6 | 46 63 7 686 286 | FLANGED CAP SCREW - 5X16-A2-80 | 1 | |
| 7 | 61 13 7 676 283 | DIAGNOSIS PLUG BRACKET | 1 | |
| 8 | 63 13 2 306 499 | SCREW - 3,5X12 | 1 | |
| 9 | 61 13 7 651 912 | PLUG-IN CONNECTION BRACKET | 1 |
