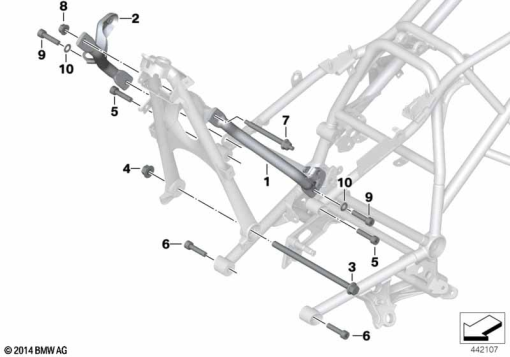

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 7 707 361 | ROD LEFT | 1 | |
| 2 | 46 51 7 705 846 | ROD RIGHT | 1 | |
| 3 | 46 51 7 677 568 | HEX BOLT - M12X210-10.9-MK | 1 | |
| 4 | 07 11 9 901 589 | HEX NUT - M12-10-ZNS3 | 1 | |
| 5 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | 1 | |
| 6 | 07 12 9 906 088 | ISA SCREW - M12X50-8.8 ZNS3 | 1 | |
| 7 | 46 51 7 688 977 | SCREW - M10X1X106-MK | 1 | |
| 8 | 07 11 9 905 307 | HEX NUT - M10X1-10-ZNS3 | 1 | |
| 9 | 07 12 9 904 632 | ISA SCREW - M10X40-8.8-MK | 1 | |
| 10 | 46 51 7 694 893 | WASHER - S10 (to 08/05) | 1 |
